ROV system and equipment

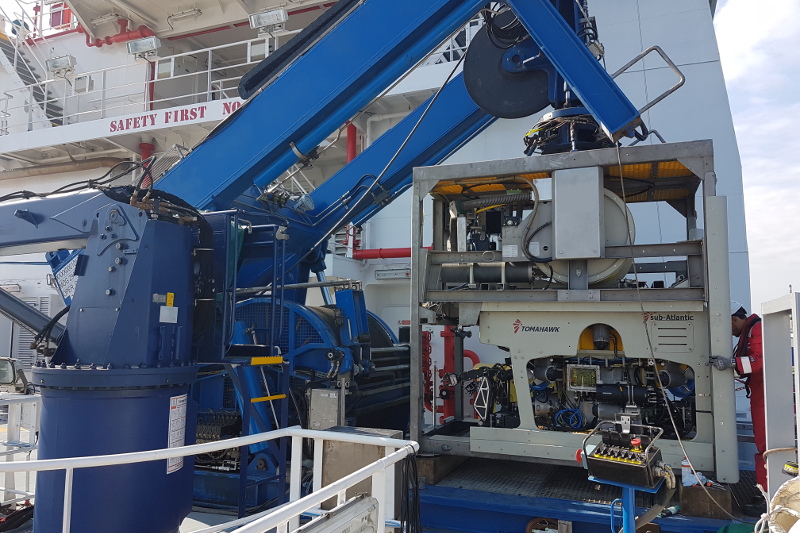

The Sub Atlantic Tomahawk is a 3000msw rated high-power electric Work Class ROV system suitable for a large variety of tasks, both survey and work.
Based on SUB-CAN state-of-the-art control system Tomahawk provides:

• Advanced I/O and power output control
• Advanced diagnostics for improved productivity
• Advanced Man-Machine Interface
• High thrust
• Dynamic station keeping and navigation
• Considerable payload
• Unparalleled instrumentation interface capability
• Considerable hydraulic tooling power
• Large variety of dedicated tools, both hydraulic and electric

The system can be configured to effectively accomplish a wide range of demanding mission interfacing latest generation survey instrumentation and tooling.
Tomahawk system is provided with long excursion TMS, LARS (ATEX/Eexd, single lift, ISO 20’ footprint) and dedicated A60 Control Van and DNV Store Van as a standard.
Live boating configuration is also available on request.

ROV General Specification

Depth Rating: 3000msw
Length: 1860mm
Height: 1200mm
Width: 1200mm
Weight: 970kg
Thrust (fwd/rev/lat/vert): 225/225/225/170kgf
Payload (standard): 160kg
Auxiliary Power: 600Vdc – 15KW
Auxillary Hydraulic System: 5KW, 10KW & 15KW
Valve pack: 12 station (standard) / 16 station (optional)
System Power Requirements: 440 Vac 3ph 50/60 Hz 110 kVA

LARS 55 kVA – ROV 40 kVA – Controll Van 15 kVA
High speed data transmission: 2 off 1GB Ethernet Interface Card
4 off simultaneous video channel (plus 4 optional)
2 Full HD Video Channel (optional)
Various RS232 and 485 serial channels
FULL HD Video Capability (optional)
Paroscientific Digiquartz Depth Transducer (Standard)
DVL aided Dynamic Station Keeping and Navigation (Standard)
Survey Grade FOG Gyro (optional)
Advanced diagnostic capability for improved productivity
Work-class manipulator suit
Wide range of tooling including, but not limited to:
HP water jetting
Dredging package
Cutting/grinding disc
API Standard Torque tool
HP Fluid Injection Pump
AX/VX Gasket Replacement tool
TMS garage type, top feed tether, 600m tether capacity, electro-optical slipring, camera, lighting
Lloyd’s Register certified, ATEX 3000msw LARS, single lift, ISO 20’ footprint
IMO A60/DNV 2.7-1 20’ Control Van
DNV 2.7-1 10’ Store Van

The ROV Pollux III is an observation class ROV with an HD polyethylene frame, equipped with 4 electrical motors and with the following specifications:

CAMERA SYSTEM
The main ROV camera is fitted within the POD and it is installed on a dedicated support that enables a tilt angle up to 160°. The ROV system can bring to the surface 2 video signal at the same time, chosen from a maximum of 4 sources. Thus it is possible to install additional cameras and camcorders devices.

ACCESSORIES
Further to the standard video equipment, the ROV Pollux III, can be outfitted with a wide range of accessories to satisfy client requirements.
Some examples of accessories include: manipulator, sonar, HD camcorders, wall thickness gauge, CP probe and pipe tracker.

SOFTWARE
The onboard software includes the following functions and capabilities:

• auto-heading and auto-depth
• compass and depth sensor calibration
• video equalization
• On Screen Display
• clock
• data export through RS232 and USB interfaces (the exported data varies based on customer requests)

ON SCREEN DISPLAY
OSD provides the following information:

• compass reading
• depth
• auto-depth e auto-heading status
• umbilical turn counter
• time and data
• free text (at the operator disposal)
